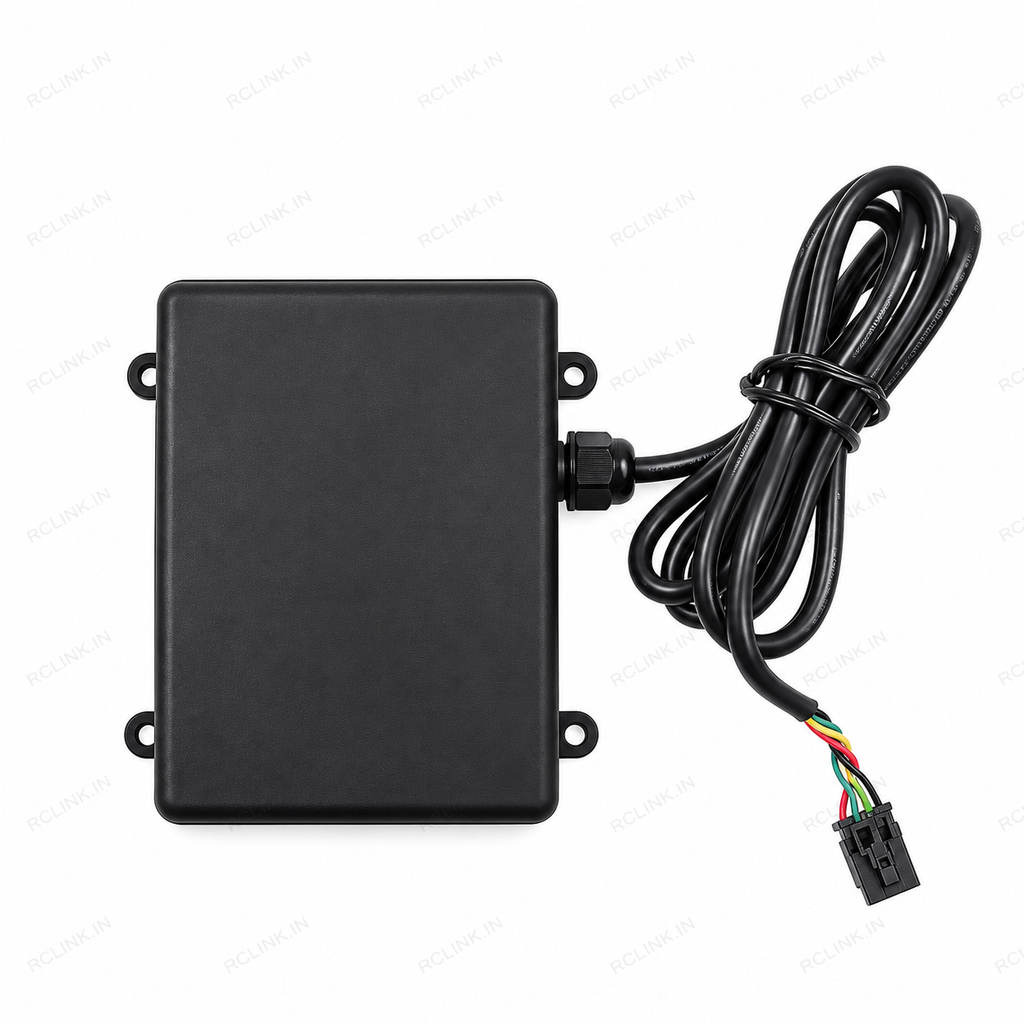

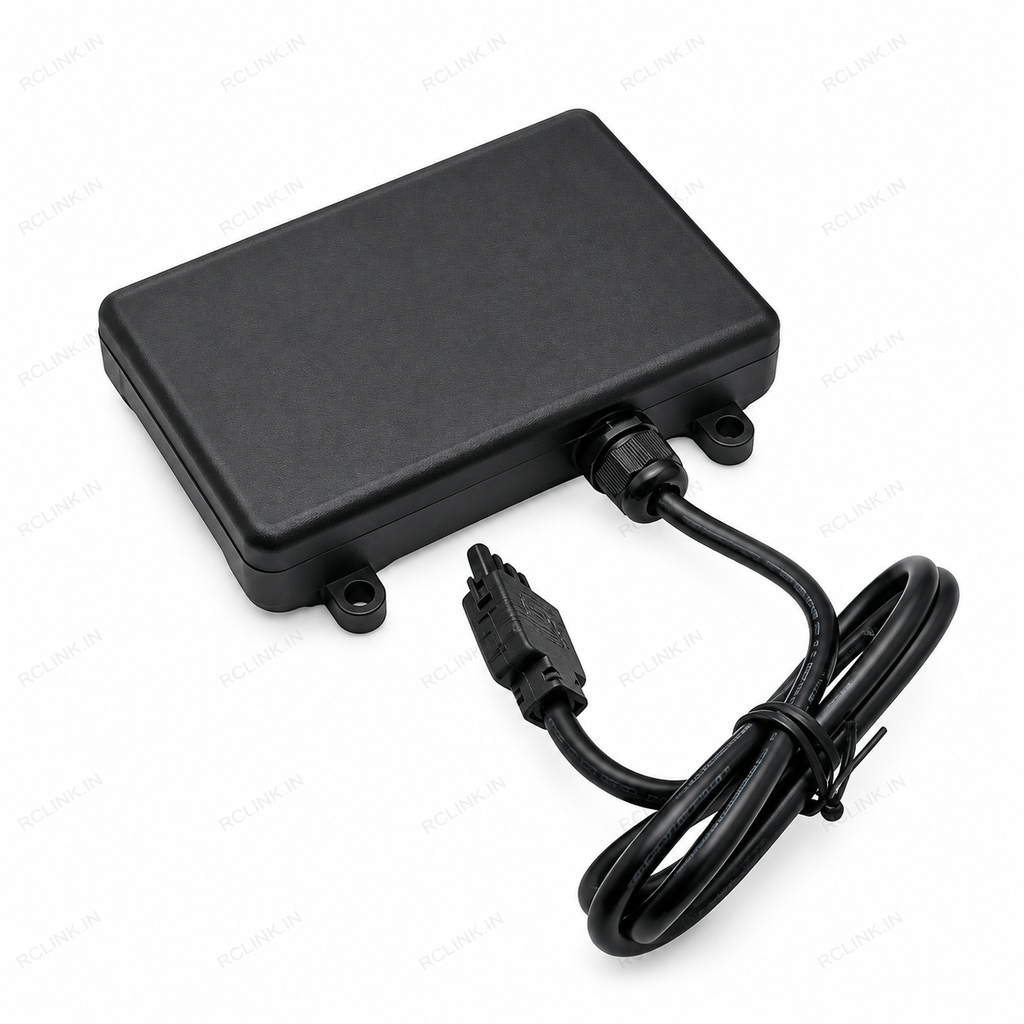

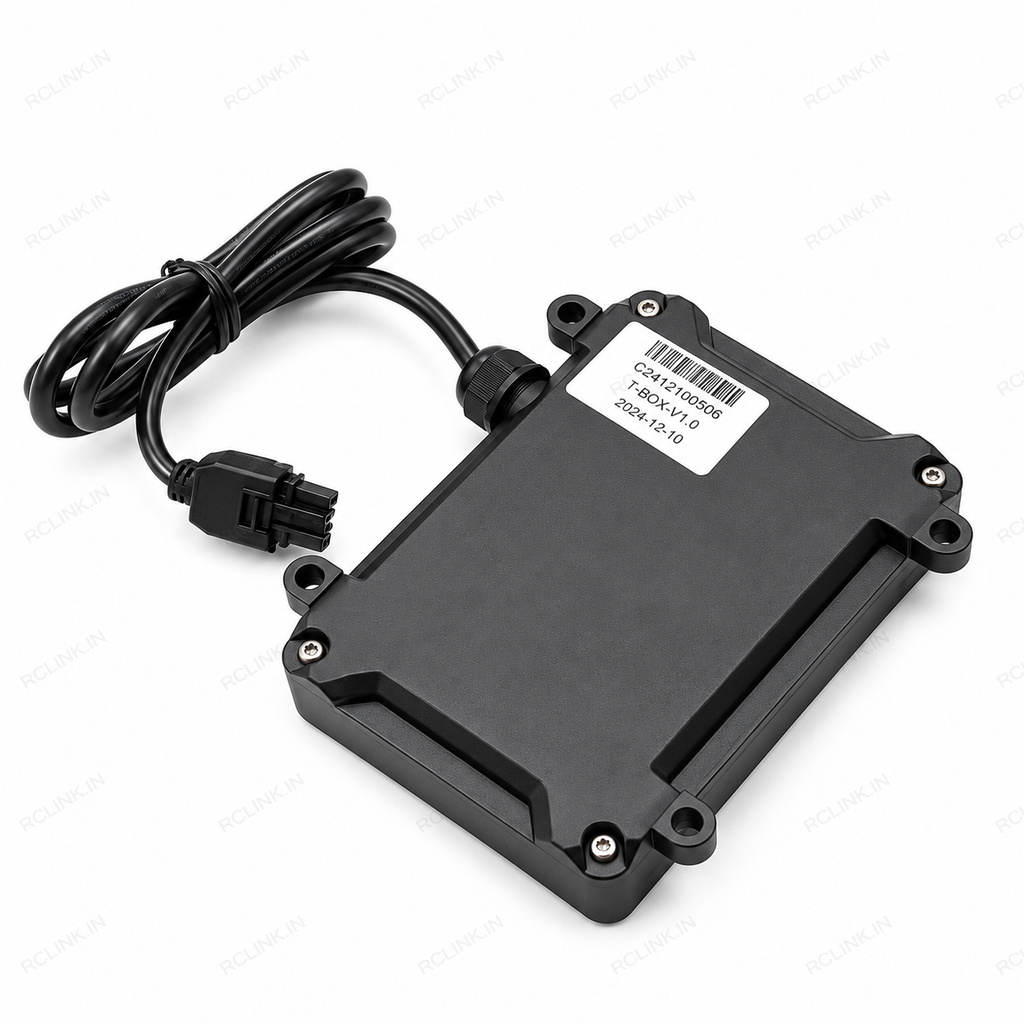

JIYI Terrain Following Radar Sensor for Agricultural Sprayer Drones
JIYI Terrain Following Radar Sensor for Agricultural Sprayer Drones
The JIYI Terrain Following Radar Sensor is an agricultural UAV sensing component designed for compatible agricultural spraying drones. It helps the drone's flight-control system detect changes in terrain elevation and supports terrain-following operations during agricultural spraying.
By providing terrain and altitude sensing information to a compatible flight-control system, the radar sensor can help maintain a more consistent flight height over varying ground surfaces, subject to the capabilities and configuration of the complete drone system.
| Product Type | Radar |
|---|---|
| Compatible Drone Type | Agricultural |
| Brand | JIYI |
| Material | Plastic |
| Weight | 50g |
| Temperature | -20°C~+85°C |
| Output Interface | CAN |
| Modulation Mode | FMC |
Features:
- Strong penetrability (including fog, smoke, dust, light rain); not affected by light
- Strong anti-interference ability, good environmental applicability
- Stable performance, detection distance of 15m
- Power-saving and high efficiency. The total power consumption is only 1.5W
- It works all day, and all days
- Small size and lightweight
- Product Weight:
- Centre Frequency: 24.125Ghz
- Modulation Mode: FMC
- Usage Environment: No obstruction below. Try to stay away from water mist
- Altimetry Range: 0.3- 15 m (Relative to the ground)
- Altimetry Accuracy: 0.05 m
- Output Frequency: 50Hz
- Power Waste: 1. 5W @25°C
- Working Voltage: 6-28V
- Working Temperature: -20°C~+85°C
- Output Interface: CAN
- 1 x Jiyi Ground Radar Module
Compatibility
Before purchasing, confirm compatibility with your JIYI flight controller, drone model, wiring/connector configuration and flight-control software.
Correct installation and configuration are essential for terrain-following functions to operate properly.
Buy JIYI Terrain Following Radar from RCLINK
RCLINK provides professional agricultural drone sensors, radar modules, flight-control components, UAV electronics and drone spare parts for agricultural UAV manufacturers, technicians and operators.
Choose the JIYI Terrain Following Radar Sensor for compatible agricultural sprayer drone systems requiring terrain and altitude sensing capabilities.
