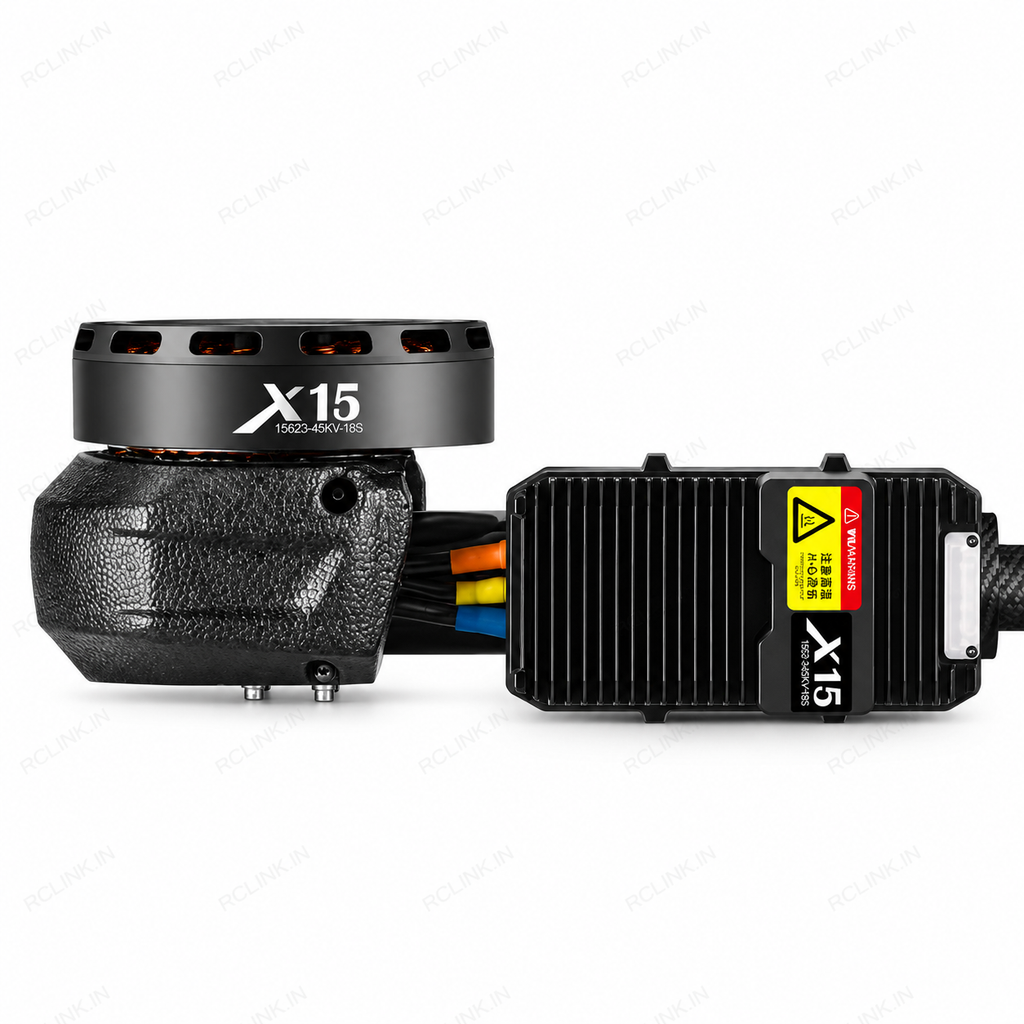

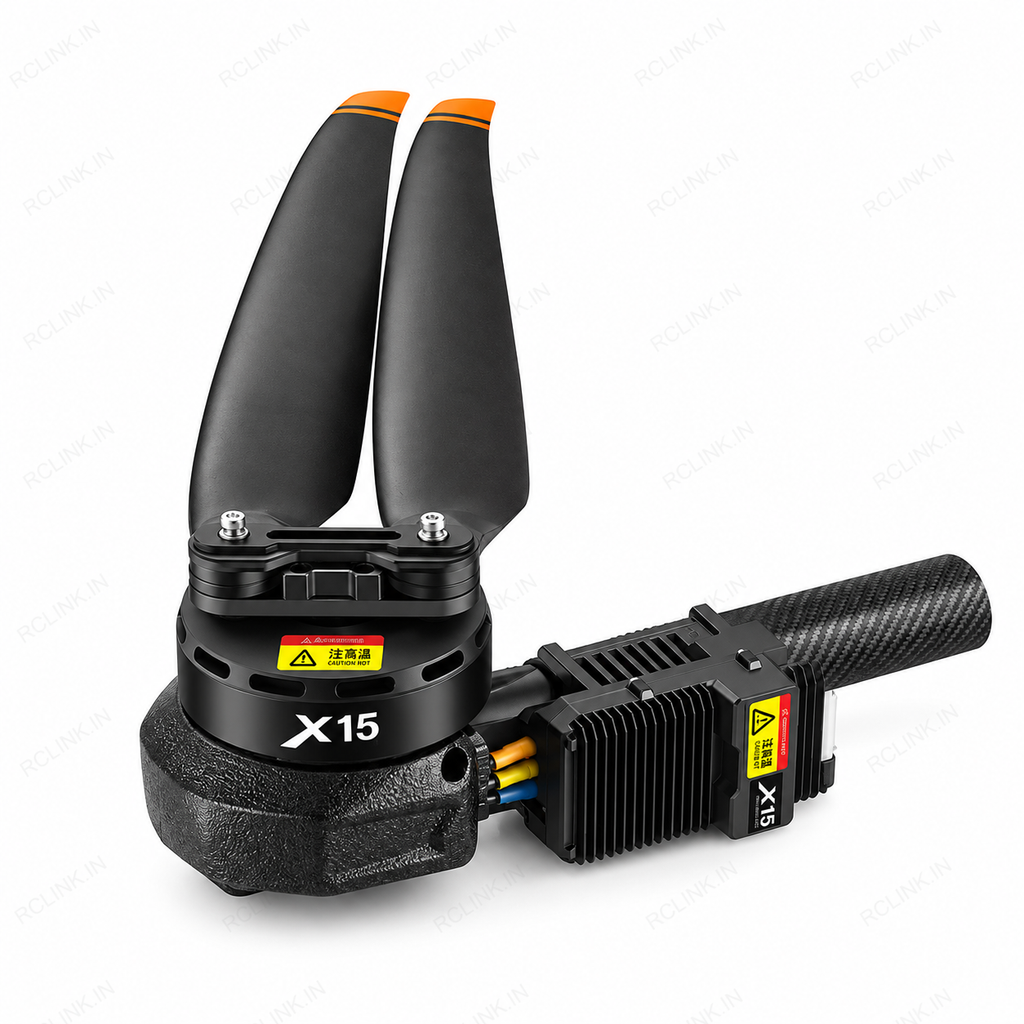

Hobbywing X15 Motor With MFP 63×24 Propeller for Agricultural Drones

The Hobbywing X15 Motor MFP 63×24 Carbon Fibre Propeller is a precision UAV propulsion component designed for compatible Hobbywing X15 motor systems. It is suitable for agricultural drones, professional multirotor UAVs and other compatible drone platforms requiring a replacement or spare propeller.

Manufactured using a carbon-reinforced plastic construction, this propeller is designed to provide a practical combination of strength, lightweight performance and durability for compatible UAV propulsion applications.

Key Features

• Hobbywing X15 MFP Compatible – Designed for compatible X15 MFP propulsion systems.
• 63×24 Propeller Size – Product-specific 63×24 configuration.
• Carbon Plastic Construction – Lightweight and durable material construction.
• Agricultural Drone Application – Suitable for compatible agriculture and spraying UAV platforms.
• Replacement Propeller – Ideal as a replacement or spare for damaged or worn propellers.
• Professional UAV Component – Suitable for drone manufacturers, technicians, service centres and professional operators.



  Product Name	X15-18S
  Specifications	Max thrust 72kg (69V,Sea Level)*1 Recommended takeoff weight per axis 32.5-37.5kg/rotor Efficiency of recommended takeoff weight 8.2-7.6g/W Lithium compatible 18S（LiPo） Operating temperature -10~40℃ Weight（with cable and Props） 5908g(including propeller)*2 Throttle PWM+CAN Communication protocol CAN Parameter tuning function Enabled*3 Powertrain arm tube outer diameter 60mm Ingress protection IPX6 Rated output power (Max continuous) 4400W Wire sequence Black & White--PWM signal Black--GND, White--Signal Red & Gray--CAN interface Red--CAN High, Gray--CAN Low DataLink Version DataLinkBox G3
  Motor	KV 45rpm/V Stator size 156*23mm Bearing Waterproof bearing
  ESC	Recommended battery 18S(LiPo) PWM input signal level 3.3V/5V Compatible signal frequency 50-500Hz Throttle pulse width 1050-1950μs(Solidified) Throttle range calibration Not available*4 Max allowable voltage 78.3V Max allowable current (short-time and continuous): 300 A (non-hermetic ambient temperature ≤ 60°C) BEC None CAN resistance No Terminal Resistance CAN default baud rate 500k bps Protocol version HWCAN+DroneCAN CAN sampling rate 83.3%
  Propeller	Propeller name MFP 63x24 carbon plastic propeller*5 Diameter * Thread pitch MFP 63x24

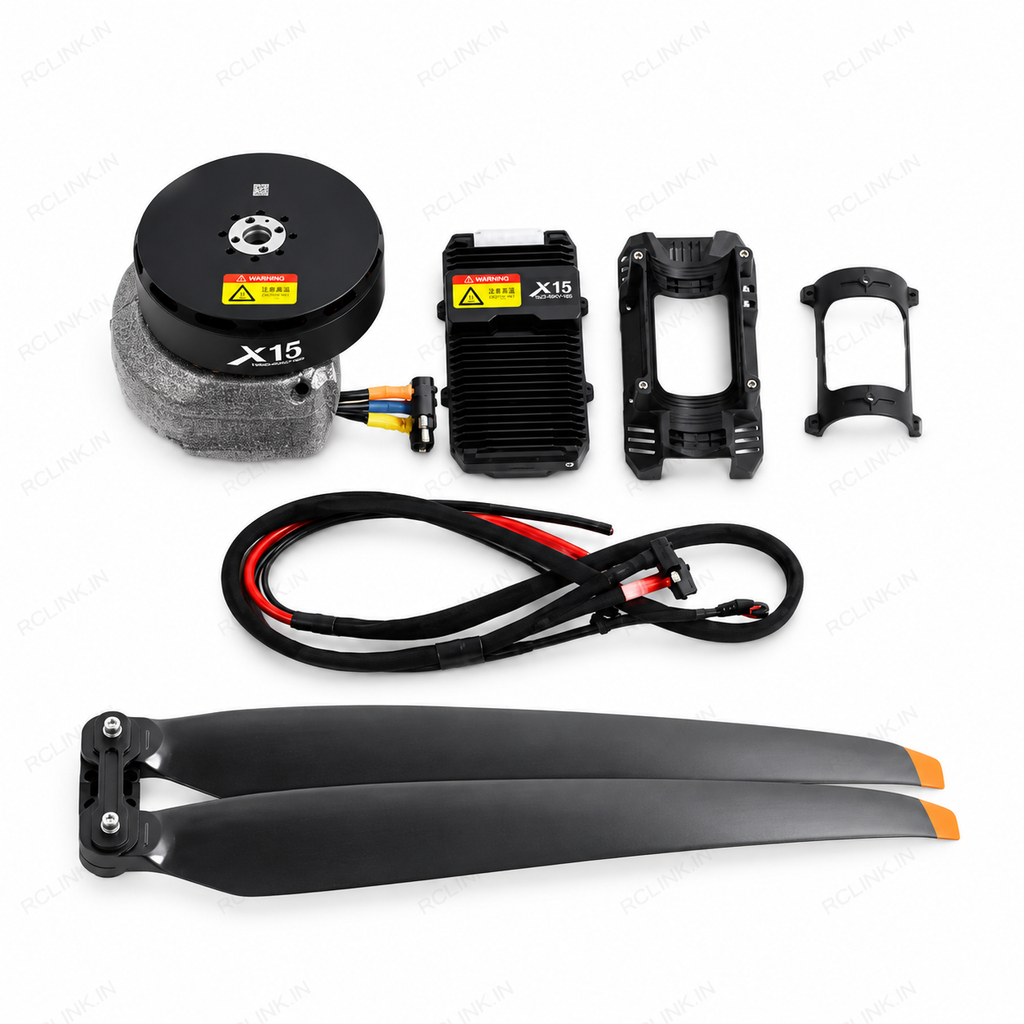

  Package Includes

  1 × Hobbywing X15 MFP 63×24 Carbon Plastic Propeller

  Please verify the exact quantity and CW/CCW configuration of the selected product before ordering.

  Compatibility

  Before purchasing, verify the Hobbywing X15 MFP motor system, propeller direction (CW/CCW), mounting interface and drone configuration to ensure proper compatibility.

  Always install propellers according to the manufacturer's recommended orientation and specifications.
